After 15 months and over 1,000 hours of build time, I got to enjoy my FD for a total of 50 miles before it went up in a ball of fire. http://www.norotors.com/index.php?topic=21978.0

Rundown of current parts/ wishlist:
Suspension/ brakes/ driveline:
De-powered/ welded steering rack
steel braided lines
929 MC
S&W Roll cage
Ronin engine mounts and pedestals
Prothane control arm bushings
Weld 15x9 Prostars (5.5" BS) w/ M/T 275 pro radials
Weld 15x9 Prostars (5.5" BS) w/ Nitto 555R 275/60/15
15x4 Prostar reps w/ MT front runners
Rossler Terminator 2.5 (TH400, reverse shift, trans brake)
B&M Pro-ratchet stealth shifter
Solid axle 8.8 w/ 3.27
Moser 28 spline c-clip axles
QA1 rear coilovers 12" spring 110#
Competition engineering 4 link and panhard bar
Ground Control front coilovers
Wilwood brake blocker for rear
Custom driveshaft loop

Motor:
LS1 out of an '98 Camaro
Ported and welded 806 heads
Honed and piston ring gaps opened up (.028-.029" top and .030-.031" second)
ARP rod bolts
ARP head bolts
GM Performance MLS headgaskets
Summit trunnion upgrade kit
Trickflow timing set
GM Performance LS7 lifters
GM Performance high flow oil pump
BTR Stage 3 turbo cam
BTR .660" spring kit
Chromoly pushrods
VSR 88/83 T4 large frame journal bearing turbo
(2) Tial 38mm wastegates
VSR BOV
VSR FMIC


Fuel:
-10 AN feed and return
FAST Fuel rails
Aeromotive 14140 Belt drive
Aeromotive FPR
MS3Pro
Deka 80lb/hr injectors
ARE drive mandrel
Aeromotive 14T Gilmer pulley

Misc:
Speedhut Tach
Autometer boost gauge
VDO Coolant and fuel level gauge
Innovate WB
Kirkey Prostreet seat
Stroud fire suppression system
Quarter master drag wing
Jpezzuti cowl hood
LED lights


Let's hope this one lasts a little longer. I present to you: project GXLS (see what I did there)

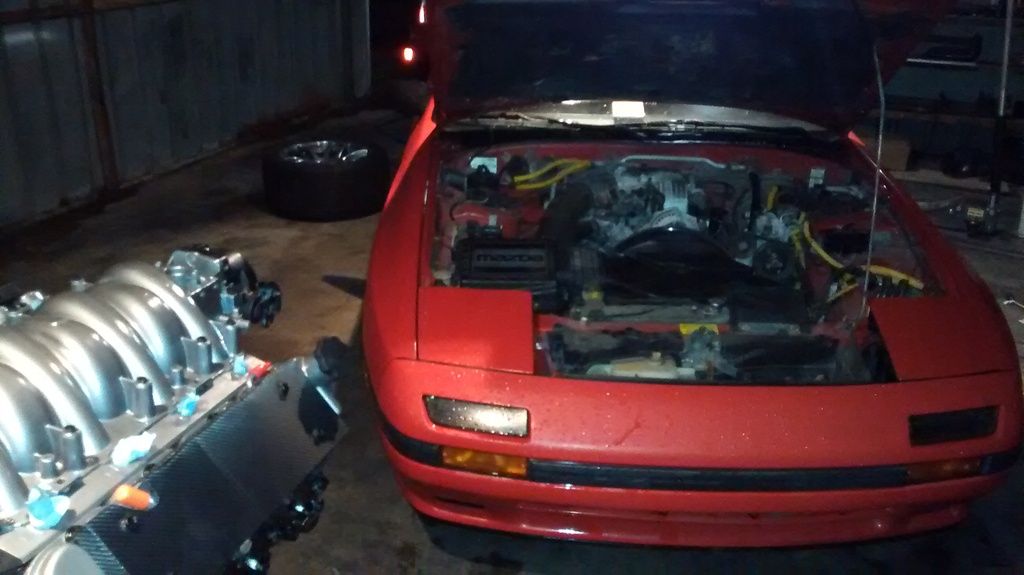

I picked up this gem from the 80's last night:

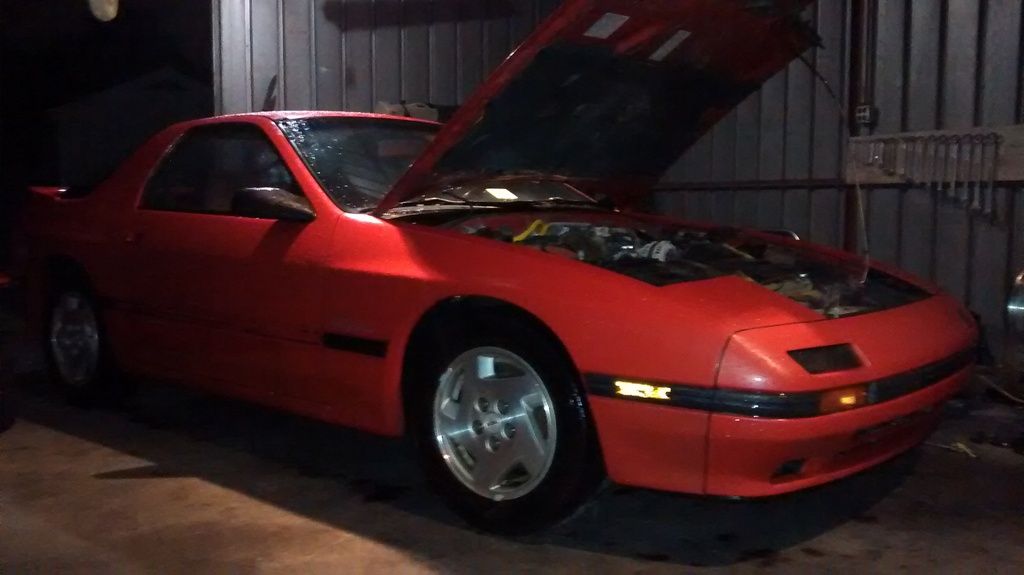

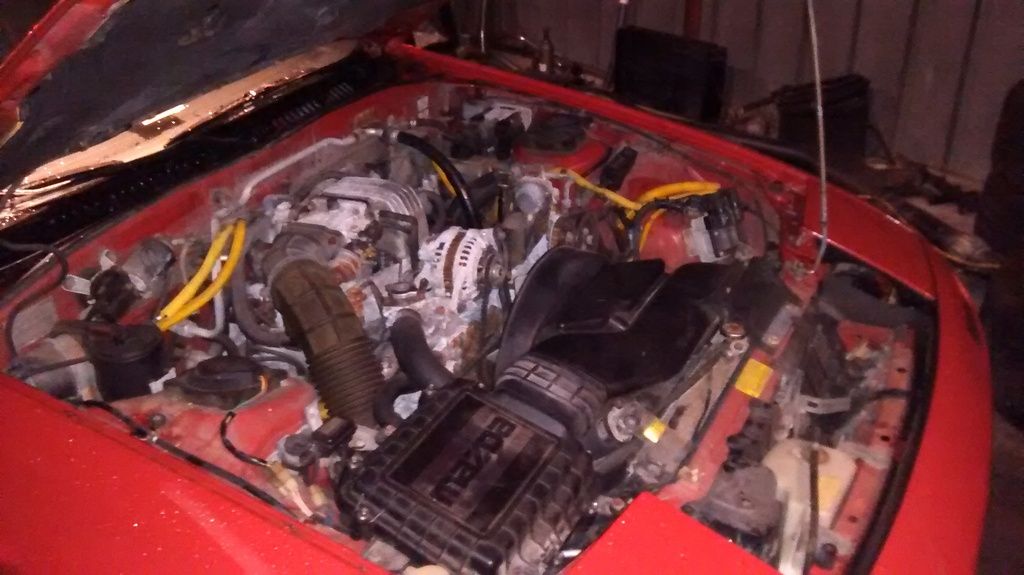

Soooo stock:

Soon...

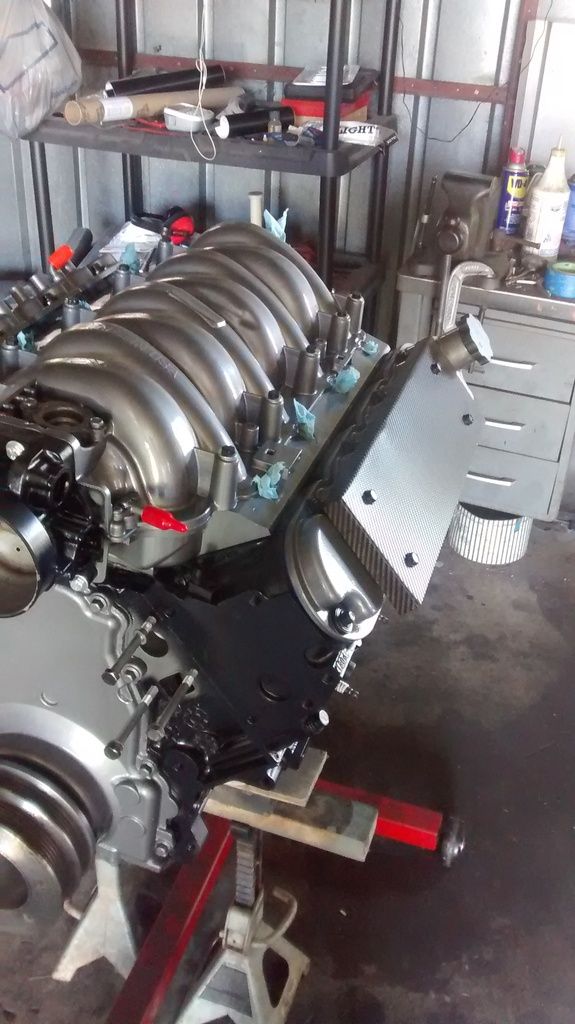

After the fire I took some time to clean up the motor. Looks way better than before. Even made some covers for the hideous perimeter valve covers:


This car will be more a drag set-up: solid axle is in the works. Belt driven fuel pump. Cage. And yes, fire suppression system.

I'm going to try and get this track worthy before the end of the year.  :drive:
